• Paint, solid
• Body, standard
• Bumpers, front and rear, painted Black, includes step-pad (Not available with (ZR7) Chrome Appearance Package.)
• Grille, Black composite, with single rectangular halogen headlamps
• Headlamps, single rectangular halogen
• Daytime running lamps
• Mirrors, outside rearview, manual folding, Black (If the van is an extended Model (*G**7**), or if the van has no rear windows, then the van will get a flat right side mirror. All other vans will have a convex right side mirror.)
• Glass, Solar-Ray light tinted, all windows
• License plate kit, front
• Wipers, intermittent, front wet-arm with pulse washers
• Door, swing-out passenger side, 60/40 split

• Seats, driver and passenger high-back reclining buckets, adjustable, with head restraints and vinyl or cloth trim
• Seats, front vinyl reclining buckets, includes head restraints (Requires (**W) Interior Trim.)
• Floor covering, Black rubberized vinyl full length floor covering
• Key, single, 2-sided
• Oil life monitor
• Warning tones, headlamp on, key-in-ignition
• Steering wheel, steel sleeve column, includes theft-deterrent locking feature, Black
• Tow/haul mode selector, IP mounted
• Theft-deterrent system, PASSlock
• Air conditioning, front manual
• Defogger, side window
• Sound system, ETR AM/FM stereo, includes seek-and-scan and digital clock. Includes front door speakers (2)
• Console, base, includes open storage bin
• Mirror, inside rearview, manual day/night
• Headliner, cloth, over driver and passenger
• Visors, padded, driver and passenger side
• Assist handle, front passenger
• Lighting, 2 dome lamps, includes defeat switch and door handle-activated switches

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, driver and right front passenger (Includes passenger side air bag deactivation switch on models with GVWR, 8600 lbs. (3901 kg) and above. Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information.)
• Air bag deactivation switch, passenger side (Requires (C6P) GVWR, 8600 lbs. (3901 kg) or (C6Y) GVWR, 9600 lbs. (4354 kg))
• Door beams, steel-side
• Daytime running lamps

DOOR LOCKS, POWER

• includes Lock-out Protection

PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

SEATS, DRIVER AND PASSENGER HIGH-BACK RECLINING BUCKETS, ADJUSTABLE

• with head restraints and vinyl or cloth trim (STD)

SEATS, FRONT CUSTOM CLOTH BUCKETS

• includes head restraints and inboard armrests

KEYLESS ENTRY, REMOTE

• includes 2 transmitters

FLOOR COVERING, BLACK RUBBERIZED VINYL, FRONT ONLY

• (deletes rear covering behind front seat)

AIR CONDITIONING, FRONT MANUAL

• (STD)

GVWR, 8600 LBS. (3901 KG)

• (STD)

SMOKER'S PACKAGE

• includes ashtray and lighter

REAR AXLE, 3.73 RATIO

• (STD)

ENGINE, VORTEC 4800 V8 SFI

• (285 HP [212.6 kW] @ 5600 rpm
• 295 lb.-ft. [398.3 N-m] @ 4000 rpm) (STD)

TRANSMISSION, 4-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive
• tow/haul mode and internal transmission oil cooler (STD)

EMISSIONS OVERRIDE, FEDERAL

• (for vehicles ordered by dealers in Federal emission states with California
• New York
• Vermont
• Massachusetts or Maine emissions; may also be used by dealers in states of California
• New York
• Vermont
• Massachusetts or Maine to order different state-specific emissions)

SOUND SYSTEM, ETR AM/FM STEREO

• includes seek-and-scan and digital clock. Includes front door speakers (2) (STD)

BODY, STANDARD

• (STD)

DOOR, SWING-OUT PASSENGER SIDE, 60/40 SPLIT

• (STD)

PAINT, SOLID

• (STD)

• 145 Amp Alternator
• 3.73 Axle Ratio
• 8,600 lbs (3,901 Kg) GVWR
• Black Rubberized Vinyl Front Only Floor Covering
• California State Emissions Requirements
• Electronic 4-Speed Heavy Duty Automatic Transmission with Overdrive
• ETR AM/FM Stereo/seek and Scan/digital Clock
• Federal Emissions Override
• Fixed Rear and Side Cargo Door Glass
• Front License Plate Bracket
• Front LT225/75R16E AS BW Tires
• Front Manual Air Conditioning
• Medium Pewter
• Rear LT225/75R16E AS BW Tires
• Reclining Front Bucket Seats with Inboard Armrests
• Remote Keyless Entry
• Ship-Thru: Crown/Masterack
• Smoker's Package
• Spare LT225/75R16E AS BW Tire
• Standard Body
• Summit White
• Vortec 4800 V8 SFI Engine
• Convenience Group
• Preferred Equipment Group 1
• Tilt and Cruise Convenience Group
• 12-Passenger Seating (2-3-3-4 Seating Config)
• 12V power outlets 2 12V power outlets
• 3rd row seats: bench
• 4 Speakers
• 4-Wheel Disc Brakes
• 4th-Row Bench Seat
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Air Conditioning
• Air conditioning Yes
• Alternator Type Alternator
• AM/FM radio
• Antenna Fixed audio antenna
• Armrests front driver Driver seat armrest
• Armrests front passenger Front passenger seat armrest
• Ashtray
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Lead acid battery
• Beverage holders Front beverage holders
• Body panels Fully galvanized steel body panels with side impact beams
• Brake type 4-wheel disc brakes
• Bumper rub strip rear Black rear bumper rub strip
• Bumpers front Black front bumper
• Bumpers rear Black rear bumper
• Cargo light Cargo area light
• Child door locks Manual rear child safety door locks
• Cigarette lighter Front cigarette lighter
• Climate control Manual climate control
• Clock Digital clock
• Convenience Package
• Corrosion perforation warranty 72 month/100,000 miles
• Cruise control
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door mirror style Black door mirrors
• Door mirror type Standard style side mirrors
• Drive type Rear-wheel drive
• Driver door bin
• Driver seat direction Driver seat with 4-way directional controls
• Dual front impact airbags
• Emissions tiers Tier 2 Bin 11 emissions
• Engine block material Iron engine block
• Engine Configuration Vortec V8
• Engine cooler Engine oil cooler
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Vortec 4.8L V-8
• Engine Vortec 4.8L V-8 regular unleaded, engine with 285HP
• Engine/electric motor temperature gauge
• ETR AM/FM Stereo w/Seek-Scan/Digital Clock
• First-row windows Power first-row windows
• Floor console Partial floor console
• Floor console storage
• Floor coverage Front floor coverage
• Floor covering Front vinyl floor covering
• Folding door mirrors Manual folding door mirrors
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front beverage holders
• Front Bucket Seats
• Front head restraints Fixed front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Cancellable front passenger air bag
• Front seat upholstery Cloth front seat upholstery
• Front seatback upholstery Vinyl front seatback upholstery
• Front wheel independent suspension
• Fuel Type Regular unleaded
• Gearshifter material Urethane gear shifter material
• Grille style Black grille
• Headlight type Sealed beam headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Front headliner coverage
• Headliner material Cloth headliner material
• Height adjustable seatbelts Front height adjustable seatbelts
• High mount stop light High mounted center stop light
• Ignition Spark ignition system
• Ignition type Mechanical
• Illuminated entry
• Immobilizer PassLock immobilizer
• Instrumentation display Analog instrumentation display
• Key in vehicle warning
• Keyfob cargo controls Keyfob trunk control
• Keyfob keyless entry
• License plate front bracket Front license plate bracket
• Lock-up transmission
• Manual driver seat controls Driver seat manual reclining and fore/aft control
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Number of airbags 2 airbags
• Number of doors 3 doors
• Oil pressure gauge
• One-touch down window Driver one-touch down window
• Overdrive transmission
• Paint Non-metallic paint
• Passenger cancellable airbag
• Passenger door bin
• Passenger doors rear right Split swing-out right rear passenger door
• Passenger seat direction Front passenger seat with 4-way directional controls
• Power Convenience Package
• Power Door Locks w/Lock-Out Protection
• Power steering
• Powertrain type ICE
• Powertrain warranty 36 month/36,000 miles
• Radiator
• Radio AM/FM
• Rear bumper step
• Rear cargo door Split swing-out rear cargo door
• Rear Springs Regular grade rear springs
• Reclining Front Bucket Seats w/Inboard Armrests
• Remote panic alarm
• Roadside warranty 36 month/36,000 miles
• Running lights Daytime running lights
• Seating capacity 2
• Second-row windows Fixed second-row windows
• Seek scan
• Selectable mode transmission
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Crank-down spare tire
• Speakers number 2 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Split front seats Bucket front seats
• Springs front Front coil springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Steering wheel material Urethane steering wheel
• Steering wheel tilt Manual tilting steering wheel
• Sun visor strip
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension Standard ride suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tailgate control Tailgate/power door lock
• Tailpipe Partial stainless steel single exhaust
• Tilt Steering Wheel
• Tinted windows Light tinted windows
• Tires LT225/75SR16 AS BSW front and rear tires
• Transmission 4-speed automatic
• Transmission electronic control
• Transmission oil cooler
• Transmission Type Automatic
• Trip odometer
• Trunk lid trim Plastic trunk lid trim
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Ventilated brakes Front and rear ventilated disc brakes
• Voltmeter
• Wheel covers Argent hub wheel covers
• Wheels 16 x 6-inch front and rear gray steel wheels
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Vehicle
• Rear Door Type: Dual Swing-out
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): 2667
• Curb Weight - Rear (lbs): 2197
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 640
• Suspension
• Suspension Type - Front: Independent Coil
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XHF
• Front Tire Order Code: XHH
• Rear Tire Order Code: YHF
• Rear Tire Order Code: YHH
• Spare Tire Order Code: ZHF
• Spare Tire Order Code: ZHH
• Front Tire Size: LT225/75R16E
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT225/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT225/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2060
• Rear Tire Capacity (lbs): 2680
• Spare Tire Capacity (lbs): -TBD-
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x - TBD -
• Rear Wheel Size (in): 16 x - TBD -
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr-Assisted
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: LH Midship Inboard
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 81.6
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.7
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 7.6
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.1
• Step Up Height - Side (in): 20.9
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 127.8
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.7
• Cargo Box (Area) Height (in): 51.9
• Cargo Volume (ft³): 225.1
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Summary

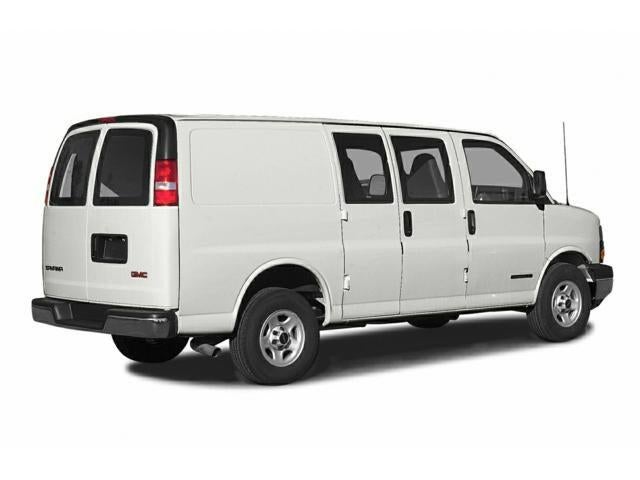

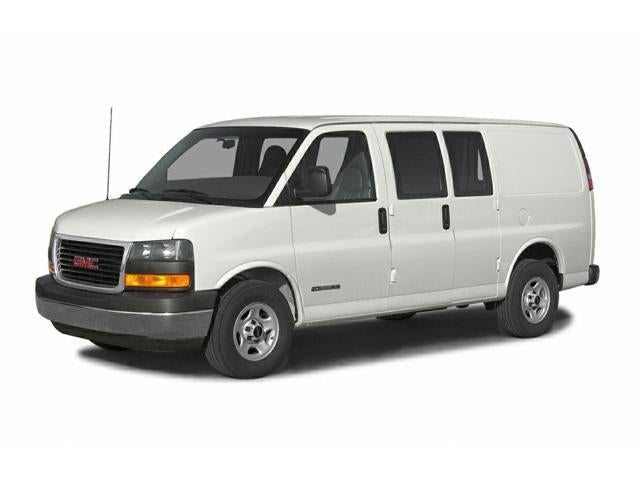

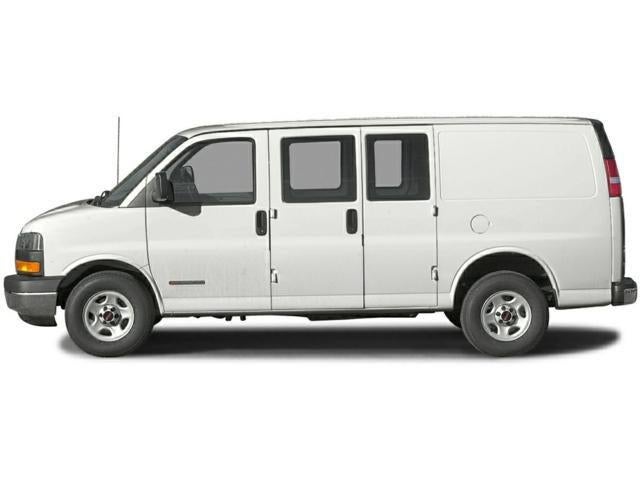

• Vehicle Name: GMC Savana Cargo Van
• Body Style: 2500 Cargo Van 135" WB
• Body Code: ZW9
