• Body, standard
• Rear wheel drive
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 105 amps
• Frame, full-length box ladder-type
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

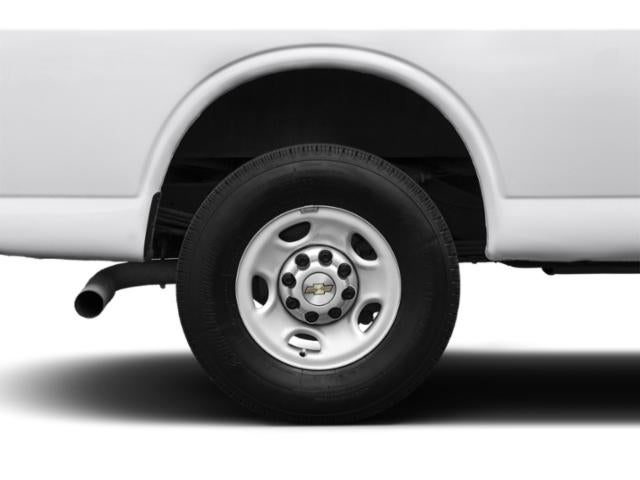

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare
• Tire, spare LT245/75R16E all-season, blackwall located at rear underbody of vehicle
• Door, swing-out passenger-side, 60/40 split
• Tires, front LT245/75R16E all-season, blackwall
• Tires, rear LT245/75R16E all-season, blackwall
• Bumpers, front and rear painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, single halogen (Not available with (ZR7) Chrome Appearance Package.)
• Mirrors, outside manual, Black
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers

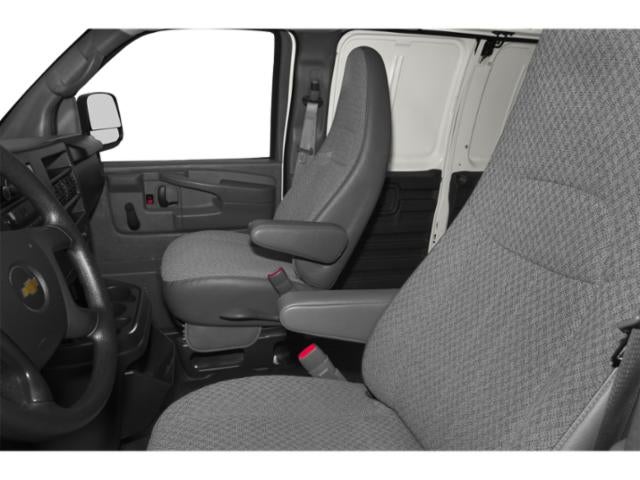

• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests. (Requires (**W) interior trim.)
• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)
• Air conditioning, single-zone manual
• Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)
• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Door locks, power with lock-out protection (NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Tow/haul mode selector, instrument panel-mounted
• Theft-deterrent system, vehicle, PASS-Key III
• Defogger, side windows
• Power outlet, 120-volt
• Trim panels, hinged rear side doors and hinged rear doors
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handle, front passenger
• Lighting, interior with 4 dome lights 1 overhead and 3 LED's on cross members in cargo area, includes defeat switch and door handle-activated switches (When (UF2) Express Access Enhanced Lighting Package is ordered, 2 LED lights are replaced with fluorescent lights.)

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal air bag. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Tire Pressure Monitoring System (does not apply to spare tire)

PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

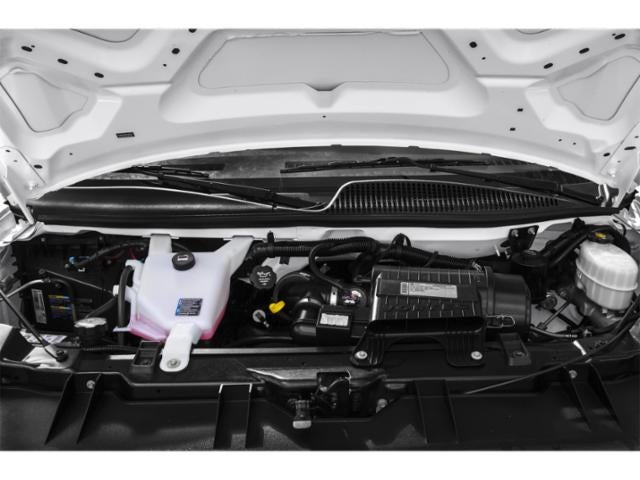

ENGINE, VORTEC 4.8L V8 SFI

• (285 hp [212.5 kW] @ 5400 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) (Includes external engine oil cooler.

LIGHTING, AUXILIARY

• with reading and underhood lights (Includes (U80) 8-point digital compass.

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM

• head restraints and inboard armrests Includes (BA3) console with swing-out storage bin.)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive tow/haul mode and internal transmission oil cooler (STD)

EMISSIONS OVERRIDE, FEDERAL

• (for vehicles ordered by dealers in Federal emission states with (YF5) or (NE1) emissions - Not required for vehicles being shipped to California
• Connecticut
• Delaware
• Maine
• Maryland
• Massachusetts
• New Jersey
• New York
• Oregon
• Pennsylvania
• Rhode Island
• Vermont or Washington)

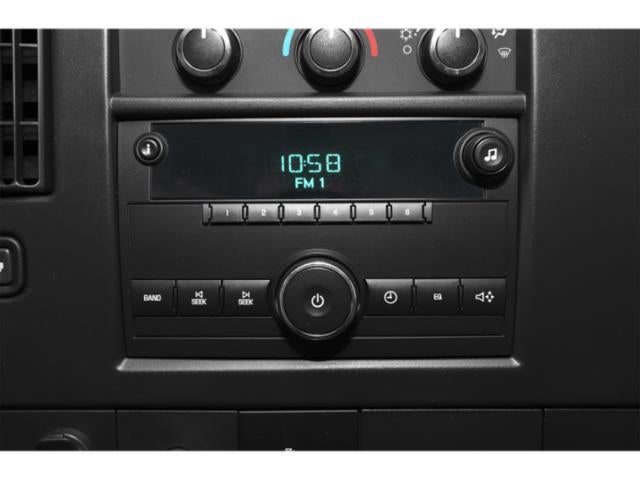

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER

• seek-and-scan
• digital clock and 2 front door speakers

ONSTAR, 6 MONTHS OF DIRECTIONS AND CONNECTIONS PLAN

• Directions and Connections plan for 6 months
• including Automatic Crash Response
• Stolen Vehicle Assistance
• Roadside Assistance and Turn-by-Turn Navigation

TIRE, SPARE LT245/75R16E ALL-SEASON, BLACKWALL

• located at rear underbody of vehicle (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

DOOR, SWING-OUT PASSENGER-SIDE, 60/40 SPLIT

• (STD)

BODY, STANDARD

• (STD)

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS

• with head restraints and vinyl or cloth trim (STD)

• 16' X 6.5' Steel Wheels
• 3.42 Rear Axle Ratio
• 8,600 lbs (3,901 Kg) GVWR
• AM/FM Stereo with MP3 Player
• CT/DE/ME/MD/MA/NJ/NY/OR/PA/RI/VT/WA Emissions Requirements
• Electronic 6-Speed Heavy Duty Automatic Transmission with Overdrive

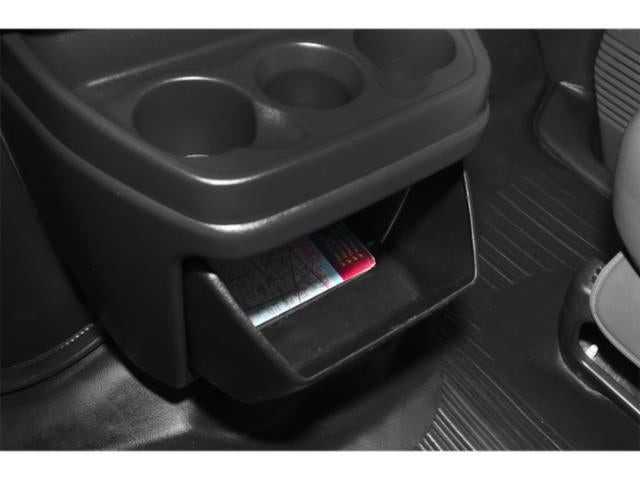

• Engine Cover Console with Swing-Out Storage Bin
• Federal Emissions Override
• Front LT245/75R16E AS BW Tires
• Full-Length Black Rubberized-Vinyl Floor Covering
• Head/side-Curtain Air Bags
• Medium Pewter
• OnStar 6 Months Directions and Connections Plan
• Rear LT245/75R16E AS BW Tires
• Rear Side and Rear Door Trim Panel Delete
• Reclining Front High-Back Bucket Seats
• Spare LT245/75R16E AS BW Tire
• Summit White
• Auxiliary Lighting
• Fixed Rear Door Glass
• Preferred Equipment Group 1
• Vortec 4.8L V8 SFI Engine
• 12V power outlets 2 12V power outlets
• 16' X 6.5' Steel Wheels
• 2 Speakers
• 4-Wheel Disc Brakes
• 8-Point Digital Compass
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Air Conditioning
• Air conditioning Yes
• Alternator Type Alternator
• AM/FM Stereo w/MP3 Player
• Antenna Fixed audio antenna
• App Link Smart device integration OnStar RemoteLink smart device app link
• Armrests front driver Driver seat armrest
• Armrests front passenger Front passenger seat armrest
• Auto headlights Auto on/off headlight control
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Lead acid battery
• Beverage holders Front beverage holders
• Body panels Fully galvanized steel body panels with side impact beams
• Brake type 4-wheel disc brakes
• Bumper rub strip rear Black rear bumper rub strip
• Bumpers front Black front bumper
• Bumpers rear Black rear bumper
• Cargo floor type Vinyl/rubber cargo area floor
• Cargo light Cargo area light
• Climate control Manual climate control
• Clock Digital clock
• Compass
• Convex spotter Driver and passenger convex spotter mirrors
• Corrosion perforation warranty 72 month/100,000 miles
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Delay off headlights Delay-off headlights
• Delay-off headlights
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door locks Power door locks
• Door mirror style Black door mirrors
• Door mirror type Standard style side mirrors
• Drive type Rear-wheel drive
• Driver door bin
• Driver information center
• Driver seat direction Driver seat with 4-way directional controls
• Driver's Seat Mounted Armrest
• Dual front impact airbags
• Electronic Stability Control
• Electronic stability control StabiliTrak electronic stability control system
• Emergency SOS Capable OnStar Directions & Connections vehicle integrated emergency SOS system
• Emissions Federal emissions
• Emissions tiers Tier 2 Bin 8 emissions
• Engine block material Iron engine block
• Engine compartment light
• Engine Configuration Vortec V8
• Engine cooler Engine oil cooler
• Engine Cover Console w/Swing-Out Storage Bin
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Vortec 4.8L V-8
• Engine Vortec 4.8L V-8 variable valve control, regular gasoline, engine with 285HP
• Engine/electric motor temperature gauge
• External Transmission Oil Cooler
• First-row windows Power first-row windows
• Fixed Rear Door Window Glass
• Floor console Partial floor console
• Floor console storage Covered floor console storage
• Floor coverage Full floor coverage
• Floor covering Full vinyl floor covering
• Folding door mirrors Manual folding door mirrors
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front beverage holders
• Front Bucket Seats
• Front head restraints Fixed front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Cancellable front passenger air bag
• Front reading lights
• Front seat upholstery Cloth front seat upholstery
• Front seatback upholstery Vinyl front seatback upholstery
• Front wheel independent suspension
• Fuel Type Regular unleaded
• Fully automatic headlights
• Gearshifter material Urethane gear shifter material
• Grille style Black grille
• Head/Side-Curtain Airbags
• Headlight type Sealed beam headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Front headliner coverage
• Headliner material Cloth headliner material
• Height adjustable seatbelts Front height adjustable seatbelts
• High mount stop light High mounted center stop light
• Ignition Spark ignition system
• Ignition type Mechanical
• Immobilizer
• Inside Rear-View Manual Day/Night Mirror
• Instrumentation display Analog instrumentation display
• Interior 120V AC power outlets 1 interior 120V AC power outlet
• Internet access Selective service internet access
• Key in vehicle warning
• License plate front bracket Front license plate bracket
• Lock-up transmission
• Low level warnings Low level warning for fuel
• Low tire pressure warning
• Low tire pressure warning Tire specific low air pressure warning
• Maintenance warranty 24 month/24,000 miles
• Manual driver seat controls Driver seat manual reclining and fore/aft control
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Number of airbags 4 airbags
• Number of doors 3 doors
• Occupancy sensor Airbag occupancy sensor
• Occupant sensing airbag
• Oil pressure gauge
• One-touch down window Driver one-touch down window
• OnStar 6 Months Directions & Connections Plan
• Overdrive transmission
• Overhead airbags Curtain first-row overhead airbags
• Paint Non-metallic paint
• Passenger cancellable airbag
• Passenger door bin
• Passenger doors rear right Split swing-out right rear passenger door
• Passenger seat direction Front passenger seat with 4-way directional controls
• Passenger seat mounted armrest
• Power steering
• Power windows
• Powertrain type ICE
• Powertrain warranty 60 month/100,000 miles
• Radiator
• Radio AM/FM
• Rear bumper step
• Rear cargo door Split swing-out rear cargo door
• Rear Springs Regular grade rear springs
• Rear window trim Black rear window trim
• Rear windshield Fixed rear windshield
• Reclining High-Back Front Bucket Seats
• Roadside warranty 60 month/100,000 miles
• Running lights Daytime running lights
• Seating capacity 2
• Seek scan
• Selectable mode transmission

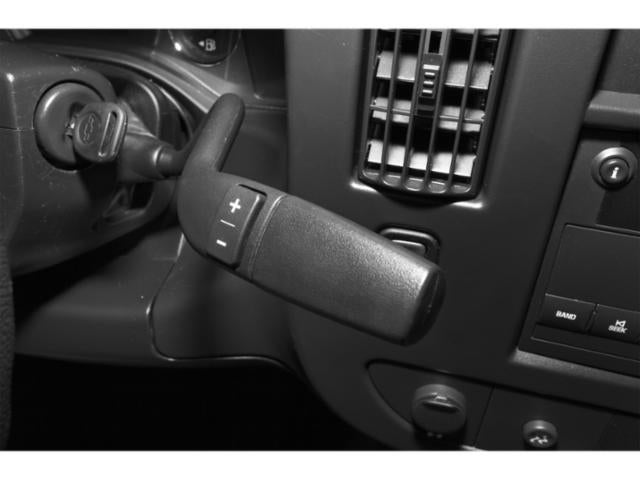

• Sequential shift control
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Crank-down spare tire
• Speakers number 2 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Split front seats Bucket front seats
• Springs front Front coil springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering type Re-circulating ball steering
• Steering wheel material Urethane steering wheel
• Sun visor strip
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension Standard ride suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailgate control Tailgate/power door lock
• Tailpipe Partial stainless steel single exhaust
• Tinted windows Light tinted windows
• Tires LT245/75SR16 AS BSW front and rear tires
• Traction control
• Traction control All-speed ABS and driveline traction control
• Transmission 6-speed automatic
• Transmission oil cooler
• Transmission Type Automatic
• Trip computer
• Trip odometer
• Turn-by-turn nav OnStar Turn-by-Turn Navigation
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Vehicle tracker OnStar Directions & Connections vehicle tracker with vehicle slowdown
• Ventilated brakes Front and rear ventilated disc brakes
• Vinyl Seat Trim
• Voltmeter
• Wheel covers Wheel hub covers
• Wheels 16 x 6.5-inch front and rear gray steel wheels
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Vehicle
• Rear Door Type: Dual Swing-out
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): 3148
• Curb Weight - Rear (lbs): 2452
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 720
• Maximum Trailering Capacity (lbs): 10000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2190
• Rear Tire Capacity (lbs): 2680
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 155.00
• Length, Overall w/rear bumper (in): 244.10
• Width, Max w/o mirrors (in): 79.20
• Height, Overall (in): 84.30
• Overhang, Front (in): 39.70
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.80
• Ground Clearance, Front (in): 11.00
• Ground Clearance, Rear (in): 7.10
• Rear Door Opening Height (in): 49.40
• Rear Door Opening Width (in): 57.00
• Side Door Opening Height (in): 47.90
• Side Door Opening Width (in): 44.10
• Step Up Height - Front (in): 20.30
• Step Up Height - Side (in): 20.80
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 173.60
• Cargo Area Length @ Floor to Seat 1 (in): 146.20
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.70
• Cargo Box (Area) Height (in): 53.40
• Cargo Volume (ft³): 284.4
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 39.80
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary
• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: Cargo Van
• Body Code: ZW9
